KFS-30 Cordless Driver

KFS-30 Cordless Driver

The World’s First Cordless Prewinder Installation Tool!

The KFS-30 Cordless Driver is designed for low to medium volume users of KATO Tangless and tanged CoilThread inserts. The KFS-30 is the industry’s first and only cordless tool that utilizes a Prewinder, which compresses the insert allowing for much easier and reliable installation.

The KFS-30 can install inserts from 2-56 and M2.5 up to 1/4” and M6, all powered by a rechargeable lithium-ion battery. The KFS-30 is the industry's first auto-reversing cordless driver. Once the insert is installed the driver will automatically reverse minimizing overall installation time. The KFS-30 utilizes a powerful brushless motor and only one torque adjusting compression spring, simplifying the setup process. The KFS-30’s highly adjustable torque ensures consistent installation and prolongs the life of the installation tool.

The KFS-30 cordless driver has two installation options: the KATO Prewinder Electric (KPE) installation tool and the KATO Hex Electric (KHE) installation tool.

To see the KFS-30 in action! Please visit our Video Workshop in KATOpedia.

KATO Articulating Torque Arm with Prewinder

The Fastest & Most Productive Semi-Automatic Cordless Installation System!

... when used with the KATO Linear Torque Arm, KATO strip-feed packaged Tangless inserts and the Prewinder Electric tool (2KPE series).

Linear Arm Articulating Arm

Features & Benefits

  • World’s First Cordless Prewinder Installation Tool!
  • Works with Tangless and tanged CoilThread inserts.
  • Works with strip-feed and bulk packaged inserts.
  • Installs inserts up to 1/4” and M6.
  • Auto-Reversing for reduced installation time.
  • Adjustable torque, helps prolong the life of installation tools.
  • 100% compatible with existing KATO Prewinder Electic tools (KPE Series).
  • 100% compatible with existing KATO Hex Electic tools (KHE Series).
  • Portable, clean and quiet (ideal for clean room operation).
  • Fast charging lithium-ion battery

How to Order KATO Cordless Prewinder Electric

Complete Tool Requires the Following Parts:

KFS-30 Prewinder Electric Driver
KFS-30 Cordless Electric Driver

KFS-30 Cordless Driver

PN: CT5430

The KFS-30 Cordless Driver (CT5430) includes two batteries and a battery charger. For Europe order CT5430-EU. For UK order CT5430-UK.

Prewinder Adapter

Prewinder Adapter

PN: CT5430-PA

The KATO Prewinder Adapter is a bridge that mates the KFS-30 cordless driver and the KATO KPE Series front-end assembly together.

KPE

KATO Prewinder Electric

See Table Below

The KPE Series Front End Assembly comes in a variety of nominal thread sizes up to 1/4” & M6, and is designed to install up 2D nominal length CoilThread inserts.

How to Order KATO Cordless Hex Electric

Complete Tool Requires the Following Parts:

KFS-30 Hex Driver
CoilThread, Tangless, and Tanged inserts

KFS-30 Cordless Driver

PN: CT5430

The KFS-30 Cordless Driver (CT5430) includes two batteries and a battery charger. For Europe order CT5430-EU. For UK order CT5430-UK.

LockOne

KATO Hex Electric

See Table Below

The KHE Mandrel Assembly is designed to install up to 3D nominal length CoilThread Inserts. The slim profile makes it possible to install CoilThread inserts in hard to reach places.

The KFS-30 is available in 3 models

Each with a different charger power cord:


CT5430

PN: CT5430

CT5430-EU

PN: CT5430-EU

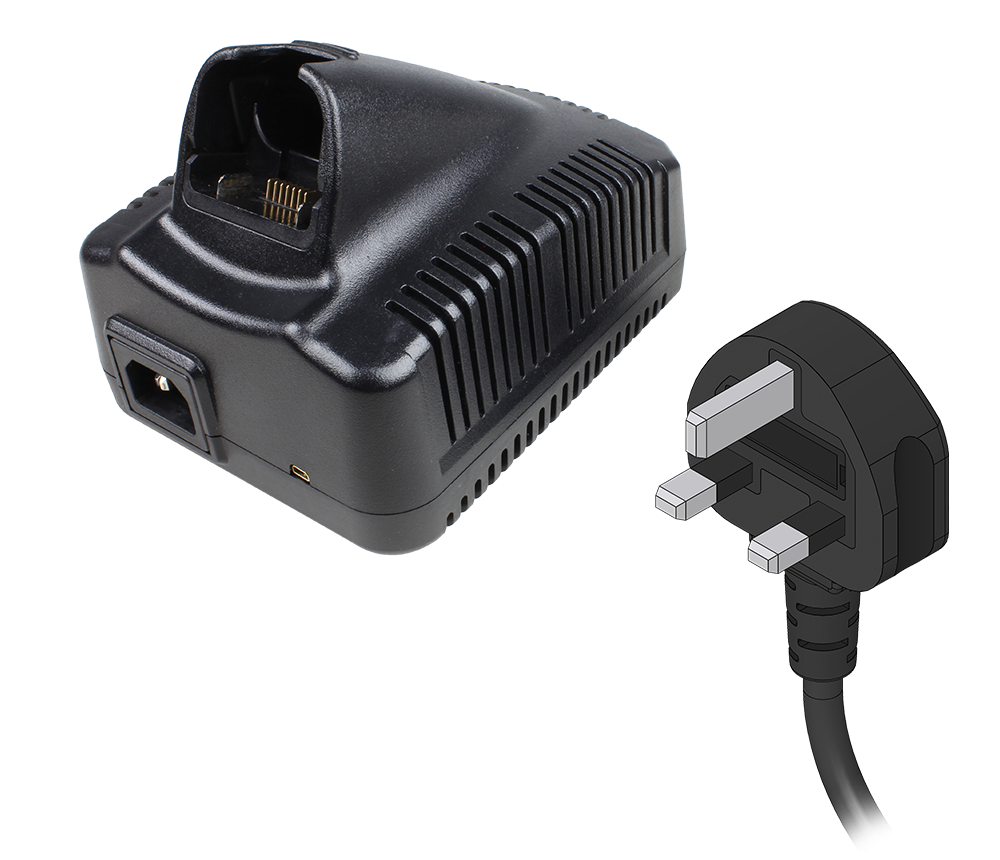

CT5430-EK

PN: CT5430-UK

Part Numbers


For fast and accurate part numbers and technical information on specific inserts try out the KATO Product Wizard.

Example of a KATO Hex & Prewinder Electric tool part number:


2 KHE C -    02

1   2    3   4  5   6


1
Tool Type		 2
Tool Style		 3
Thread
Designation		 4
Mandrel		 5
Size Designation		 6
Component / Replacement Part
Blank - For CoilThread (Tanged)
2 - Prefix for CoilThread II Tangless inserts 		KHE - KATO Hex Electric
KPE - KATO Prewinder Electric		 C - Unified Coarse
F - Unified Fine
M - Metric		 (UNF & Metric Only)
F - Free-Running
L - Locking		 Chart Below (Tangless Only)
G - Nylon Guard
H - Adusting Sleeve Housing without Nylon Guard
M - Replacement Mandrel
D - Prewinder Body
M - Mandrel Assembly (Tangless mandrel includes, pawl, pin, and spring fully assembled and ready for use)
S - Spacer Set (includes 3 spacers + 1 thick shim + 3 thin shims, where applicable)
Thread
Size		 Hex Electric Prewinder Electric Cordless
Driver		 Torque
Arms
Tangless Tanged Tangless Tanged
Unified Coarse
2-562KHEC-02KHEC-022KPEC-02KPEC-02CT543032KLRM-1
or
2KARM-1
4-402KHEC-04KHEC-042KPEC-04KPEC-04
6-322KHEC-06KHEC-062KPEC-06KPEC-06
8-322KHEC-2KHEC-22KPEC-2KPEC-2
10-242KHEC-3KHEC-32KPEC-3KPEC-3
12-24---KHEC-1------
1/4-202KHEC-4KHEC-42KPEC-4KPEC-4
Unified Fine
10-322KHEF-F3
2KHEF-L3 		KHEF-32KPEF-3KPEF-3CT543032KLRM-1
or
2KARM-1
1/4-28------2KPEF-4KPEF-4
Metric Coarse
M2.5X.452KHEM-F2.5
2KHEM-L2.5		KHEM-2.52KPEM-2.5KPEM-2.5CT543032KLRM-1
or
2KARM-1
M3X.52KHEM-F3
2KHEM-L3		KHEM-32KPEM-3KPEM-3
M3.5X.6---KHEM-3.5------
M4X.72KHEM-F4
2KHEM-L4		KHEM-42KPEM-4KPEM-4
M5X.82KHEM-F5
2KHEM-L5		KHEM-52KPEM-5KPEM-5
M6X12KHEM-F6
2KHEM-L6		KHEM-62KPEM-6KPEM-6

Please Note:

  1. For Improved Tangless installation UNF & Metric thread sizes use a different installation mandrel for Free-Running and Locking CoilThread inserts, this is indicated by the -F and -L designation in the part number. KATO strongly recommends using the Prewinder Electric Tool for Fine and Metric thread size.
  2. KATO Prewinder electric tool (KPE) is designed to work with 1, 1.5, and 2 diameter inserts, for 2.5 and 3 diameter inserts please contact KATO for availability.
  3. Use CT5430-EU for European Model. CT5430-UK for United Kingdom Model.

Tangless (Hex Electric) Replacement Parts

Thread
Size		 Replacement
Pawl		 Replacement
Pawl Kit 1		 Replacement
Mandrel		 Adjusting
Sleeve Housing		 Nylon Guard
Unified Coarse
2-562KIPC-022KIPC-02K2KHEC-02M2KHEC-02H2KHEC-02G
4-402KIPC-042KIPC-04K2KHEC-04M2KHEC-04H2KHEC-04G
6-322KIPC-062KIPC-06K2KHEC-06M2KHEC-06H2KHEC-06G
8-322KIPC-22KIPC-2K2KHEC-2M2KHEC-2H2KHEC-2G
10-242KIPC-32KIPC-3K2KHEC-3M2KHEC-3H2KHEC-3G
12-24---------------
1/4-202KIPC-42KIPC-4K2KHEC-4M2KHEC-4H2KHEC-4G
5/16-182KIPC-52KIPC-5K2KHEC-5M2KHEC-5H2KHEC-5G
3/8-162KIPC-62KIPC-6K2KHEC-6M2KHEC-6H2KHEC-6G
Unified Fine
10-322KIPF-32KIPF-3K2KHEF-F3M
2KHEF-L3M		2KHEF-3H2KHEF-3G
Metric Coarse
M2.5X.452KIPM-2.52KIPM-2.5K2KHEM-F2.5M
2KHEM-L2.5M		2KHEM-2.5H2KHEM-2.5G
M3X.52KIPM-32KIPM-3K2KHEM-F3M
2KHEM-L3M		2KHEM-3H2KHEM-3G
M4X.72KIPM-42KIPM-4K2KHEM-F4M
2KHEM-L4M		2KHEM-4H2KHEM-4G
M5X.82KIPM-52KIPM-5K2KHEM-F5M
2KHEM-L5M		2KHEM-5H2KHEM-5G
M6X12KIPM-62KIPM-6K2KHEM-F6M
2KHEM-L6M		2KHEM-6H2KHEM-6G

Please Note:

  1. Replacement Pawl Kit - includes one pawl, two pins, and two springs.

Tangless (Prewinder Electric) Replacement Parts

Thread
Size		 Replacement
Pawl		 Replacement
Pawl Kit1		 Prewinder
Body		 Mandrel
Assembly		 Spacer
Set
Unified Coarse
2-562KIPC-022KIPC-02K2KPEC-02D2KPEC-02M2KPEC-02S
4-402KIPC-042KIPC-04K2KPEC-04D2KPEC-04M2KPEC-04S
6-322KIPC-062KIPC-06K2KPEC-06D2KPEC-06M2KPEC-06S
8-322KIPC-22KIPC-2K2KPEC-2D2KPEC-2M2KPEC-2S
10-242KIPC-32KIPC-3K2KPEC-3D2KPEC-3M2KPEC-3S
1/4-202KIPC-42KIPC-4K2KPEC-4D2KPEC-4M2KPEC-4S
Unified Fine
10-322KIPC-32KIPF-3K2KPEF-3D2KPEF-3M2KPEF-3S
1/4-282KIPC-42KIPF-4K2KPEF-4D2KPEF-4M2KPEF-4S
Metric Coarse
M2.5X.452KIPM-2.52KIPM-2.5K2KPEM-2.5D2KPEM-2.5M2KPEM-2.5S
M3X.52KIPM-32KIPM-3K2KPEM-3D2KPEM-3M2KPEM-3S
M4X.72KIPM-42KIPM-4K2KPEM-4D2KPEM-4M2KPEM-4S
M5X.82KIPM-52KIPM-5K2KPEM-5D2KPEM-5M2KPEM-5S
M6X12KIPM-62KIPM-6K2KPEM-6D2KPEM-6M2KPEM-6S

Please Note:

  1. Replacement Pawl Kit - includes one pawl, two pins, and two springs.

Tanged (Prewinder Electric) Replacement Parts

Thread
Size		 Prewinder
Body		 Mandrel
Assembly		 Spacer
Set
Unified Coarse
2-56KPEC-02DKPEC-02MKPEC-02S
4-40KPEC-04DKPEC-04MKPEC-04S
6-32KPEC-06DKPEC-06MKPEC-06S
8-32KPEC-2DKPEC-2MKPEC-2S
10-24KPEC-3DKPEC-3MKPEC-3S
1/4-20KPEC-4DKPEC-4MKPEC-4S
Unified Fine
10-32KPEF-3DKPEF-3MKPEF-3S
1/4-28KPEF-4DKPEF-4MKPEF-4S
Metric Coarse
M2.5X.45KPEM-2.5DKPEM-2.5MKPEM-2.5S
M3X.5KPEM-3DKPEM-3MKPEM-3S
M4X.7KPEM-4DKPEM-4MKPEM-4S
M5X.8KPEM-5DKPEM-5MKPEM-5S
M6X1KPEM-6DKPEM-6MKPEM-6S

Specifications

All dimensions for unified size (in.) | All dimensions are are for reference only.

KFS-30 Cordless Driver

CT5430 Cordless Driver
Torque
(lbf-in)		 rpm @
High		 rpm @
Low		 Tap
Capacity		 Length
A		 Diameter
B		 Diameter
C		 Grip
Diameter		 Weight
(Ref.)		 Chuck
Capacity
0.17-6.90850600M49.8"0.43"0.66"1.55"17.5 oz1/4 Hex"

KFS-30B Li-Ion Battery

Lithium-ion battery
Lithium-ion battery
Batteries
Included		 Rechargeable Voltage Output Size Reference Weight
(Ref.)
Length
A		 Height
B		 Width
C
2Yes7.2V21.6Wh2.8"1.6"2"16 oz

KFS-30C Battery Charger

Battery Charger
Battery Charger
Maximum #
of Battery		 Input Output Size Reference Weight
(Ref.)
Length
A		 Height
B		 Width
C
1100 VAC8.4 VDC5.7"4.2"4.5"16 oz

Hex Electric Tool

2KHE (Tangless CoilThread)

Front End Assembly (2KHE)

KHE (Tanged CoilThread)

Front End Assembly (KHE)
Thread
Size		 2KHE - Tangless KHE - Tanged Weight
(lbs)
A-LengthB Dia.C Dia. A-LengthB-Dia.
Unified Coarse
2-562.840.240.373.830.280.05
4-402.950.240.373.620.280.05
6-322.940.380.373.000.310.05
8-322.990.320.372.990.310.05
10-243.000.380.374.060.380.05
12-24------------4.060.380.05
1/4-203.000.370.443.060.450.06
5/16-183.000.700.703.000.560.06
3/8-163.000.700.704.000.560.06
Unified Fine
10-323.110.380.443.610.380.06
Metric Coarse
M2.5X.452.730.240.373.000.260.05
M3X.52.710.240.373.000.250.05
M3.5X62.730.240.372.980.240.05
M4X.73.000.240.372.990.320.06
M5X.83.110.240.374.000.380.06
M6X13.090.440.444.140.440.06
M8X1.253.880.510.513.040.560.22
M10X1.54.110.610.61------0.22
M12X1.754.520.690.69------0.22

KFS-30 Cordless Driver (Prewinder Option)

CT5430 Cordless Driver
Torque
(lbf-in)		 rpm @
High		 rpm @
Low		 Tap
Capacity		 Length
A		 Grip
Diameter		 Weight
(Ref.)		 Chuck
Capacity
0.17-6.90850600M49.5"1.55"17.5 oz1/4 Hex"

Prewinder Electric Tool

2KPE (Tangless CoilThread)

Front End Assembly (2KPE)

KPE (Tanged CoilThread)

Front End Assembly (KPE)
Thread
Size		 Length
A		 Length
B		 Diameter
C		 Diameter
D		 Weight
(lbs)
Unified Coarse
2-561.690.970.180.340.09
4-401.691.090.260.400.09
6-321.851.250.310.500.09
8-321.851.050.350.510.09
10-241.851.340.370.510.12
1/4-201.651.440.420.630.12
Unified Fine
10-321.951.020.380.620.12
1/4-281.651.230.430.630.12
Metric Coarse
M2.5X.451.691.470.390.390.09
M3X.51.691.380.370.510.09
M4X.71.651.020.350.490.09
M5X.81.751.000.240.390.12
M6X11.651.480.390.630.12

Hex Cross Reference


KATO
Part Number		 Superseded
Part Number
Unified Coarse
2KHEC-022CTSB-02C
2KHEC-02M2CTSB-02CM
2KHEC-042CTSB-04C
2KHEC-04M2CTSB-04CM
2KHEC-062CTSB-06C
2KHEC-06M2CTSB-06CM
2KHEC-22CTSB-2C
2KHEC-2M2CTSB-2CM
2KHEC-32CTSB-3C
2KHEC-3M2CTSB-3CM
2KHEC-42CTSB-4C
2KHEC-4M2CTSB-4CM
Unified Fine
2KHEF-F32CTSB-3F
2KHEF-F3M2CTSB-3FM
2KHEF-L32CTSB-3F
2KHEF-L3M2CTSB-3FM
KATO
Part Number		 Superseded
Part Number
Metric Coarse
2KHEM-F2---
2KHEM-F2.52CTSB-M2.5F
2KHEM-L2.52CTSB-M2.5L
2KHEM-F32CTSB-M3F
2KHEM-L32CTSB-M3L
2KHEM-F42CTSB-M4F
2KHEM-L42CTSB-M4L
2KHEM-F52CTSB-M5F
2KHEM-L52CTSB-M5L
2KHEM-F62CTSB-M6F
2KHEM-L62CTSB-M6L
2KHEM-F82CTSB-M8F
2KHEM-L82CTSB-M8L
2KHEM-F102CTSB-M10F
2KHEM-L102CTSB-M10L
2KHEM-F122CTSB-M12F
2KHEM-L122CTSB-M12L

Comparison Chart

KFS-30 Cordless Driver
KFS-30
Part No. CT5430		 KFS-25 Brushless Driver
KFS-25
Part No. CT5425		 KFS-20 Brushless Driver
KFS-20
Part No. CT5420
Cordless Driver
Brushless Motor
Power Supply Included
KATO Prewinder Electric
KATO Hex Electric
Designed for Strip-Feed
Utilizes Prewinder Adapter
Insert Size Capability up to 1/4" & M6 6-32 - 1/2" up to 1/4" & M6
High & Low RPM
 850 / 600
1000 (reverse)		 730 / 490 720 / 480
Volume (Qty)

 Low to Medium
Strip Feed User		 Low to Medium
Bulk User		 Medium to High
Strip Feed User
Weight

 17.5 oz1 14.5 oz 12.6 oz
Length

 9.5 in.1 9 in. 8.5 in.
Chuck

 Quick-Disconnect
Keyless Chuck		 Quick-Disconnect
Keyless Chuck		 Quick-Disconnect
Keyless Chuck
Learn More

 KFS-30 KFS-25 KFS-20
  1. Including Battery
